Overview

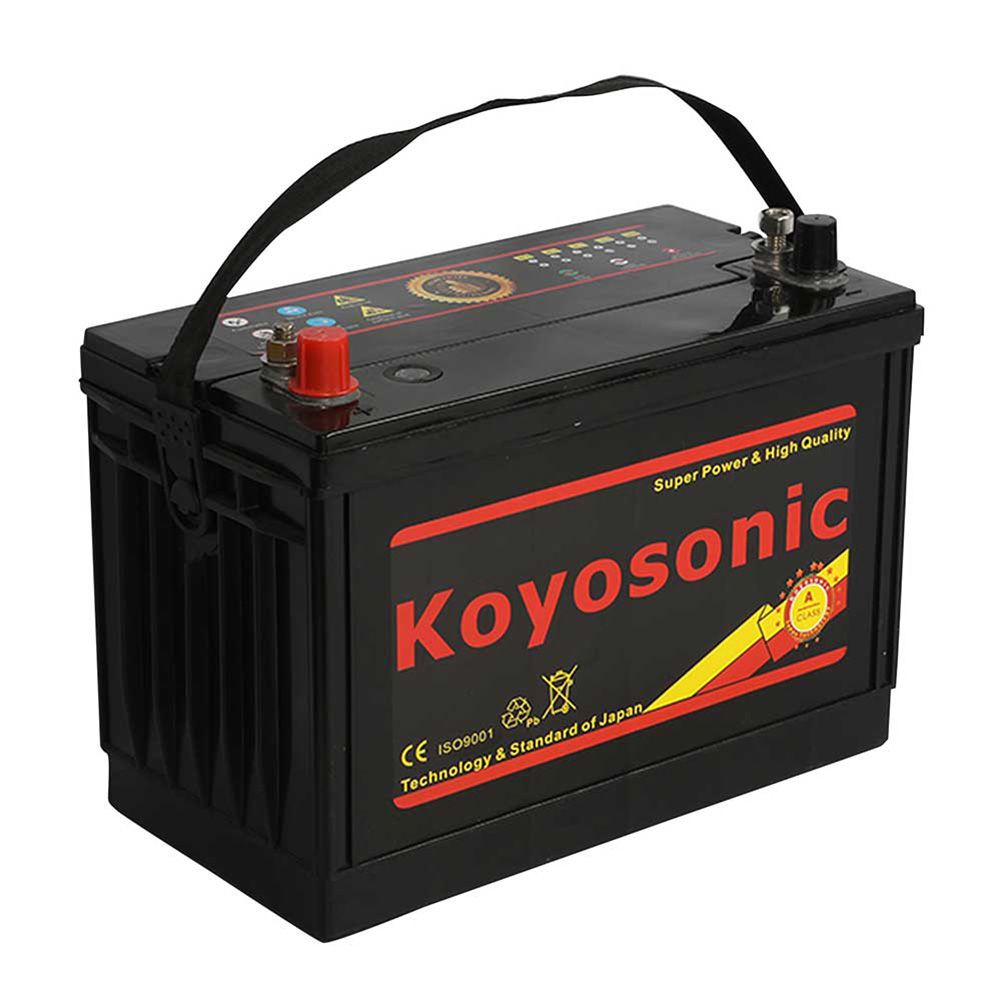

BCI Maintenance-Free Automotive Batteries

BCI batteries are sealed maintenance-free batteries, designed to start some vechicles such as cars, trucks, buses and ships. The batteries are produced as per Batttery Council Internaitonal.

Request Now
Applications
Starting, lighting and ignition for cars, trucks, buses and ships, etc. The batteries can be also used in inverter power system to store power for emergency.
Characteristics
1. High Performance Computer -Designed Plate Grid enhances current flow pattern for improved internal conductivity while unique grid alloy construction provides optimum cyclabu5dfety. 2. Advanced PE enveloped separators are incorporated to eliminate internal short circuits, reduce water loss, lower grid corrosion and boost Cold Cranking Amperage levels by a massive 10% for instant start-ups. 3. Quality sulphuric acid & pure distilled water are utilised for filling to produce the purest form of battery electrolyte. 4. Solid Inter-Cell, Through-The-Partition connectors deliver far less internal resistance for more usable power during critical operating conditions. 5. Performance-oriented venting system provides superiorcorrosion protection through effective fume dissipation while the high strength polypropylene casing endures knocks, impact and vibration resulting in longer component life.
General Specifications
BCI Gr. Model Capacity
 R.C. C.C.A at 0°F Dimension (mm) Layout Terminal Type
C20 (Ah) (Min) (A) L W H T.H.
21 21-45 45 70 400 200 173 200 220 1 A
21 21R-45 45 70 400 200 173 200 220 0 A
22 22F-60 60 90 425 240 173 182 203 1 A
22 22NF-40 40 60 325 240 130 200 220 1 A
22 22R-60 60 90 350 230 172 200 220 1 A
24 24-60 60 95 625 260 173 202 225 1 A
24 24R-60 60 95 625 260 173 202 225 0 A
26 26-50 50 80 440 208 175 190 190 1 A
26 26R-50 50 80 525 208 175 190 190 0 A
27 27-80 80 140 810 306 173 200 220 1 A
27 27R-80 80 140 810 306 173 200 220 0 A
34 34-70 70 115 675 260 172 185 200 0 A
34 34R-70 70 110 675 260 172 185 200 1 A
35 35-70 70 110 500 230 170 200 220 1 A
36 36R-60 60 130 650 260 172 185 200 1 A
40 40R-74 74 120 650 275 175 175 175 0 A
41 41-66 66 95 640 290 175 175 175 0 A
42 42-45 45 95 495 240 175 175 175 0 A
45 45-50 50 80 400 240 130 200 220 1 A
46 46-60 60 95 450 270 173 200 224 1 A
47 47-55 55 85 550 240 175 190 190 0 A
48 48-66 66 95 580 275 175 190 190 0 A
49 49-88 88 150 900 353 175 190 190 0 A
51 51-45 45 70 435 240 130 200 220 0 A
51 51R-45 45 70 435 240 130 200 220 1 A
58 58-50 50 75 540 235 173 157 177 1 A
58 58R-50 50 75 580 235 173 157 177 0 A
75 75-60 60 90 690 230 180 182 182 1 Side
78 78-70 70 115 770 260 180 182 182 1 Side
90 90-50 50 80 520 240 175 175 175 0 A
91 91-63 63 100 600 275 175 175 175 0 A
92 92-75 75 130 650 315 175 188 188 0 A
93 93-88 88 150 800 353 175 175 175 0 A
94 94-85 85 135 660 315 175 188 188 0 A
96 96R-60 60 95 590 240 175 175 175 0 A
99 99-36 36 50 330 210 175 175 175 0 A
30 30H-90 90 150 685 310 173 204 225 1 A
31 31A-100 100 200 950 330 172 220 245 1 A
4D 4D-160 160 325 1125 510 220 210 235 4 A
8D 8D-200 200 465 1250 520 270 220 240 4 A
6T 6TN-100 100 180 830 272 260 200 226 1 A
7T 6TL-100 100 180 830 272 260 200 226 2 A
