Overview

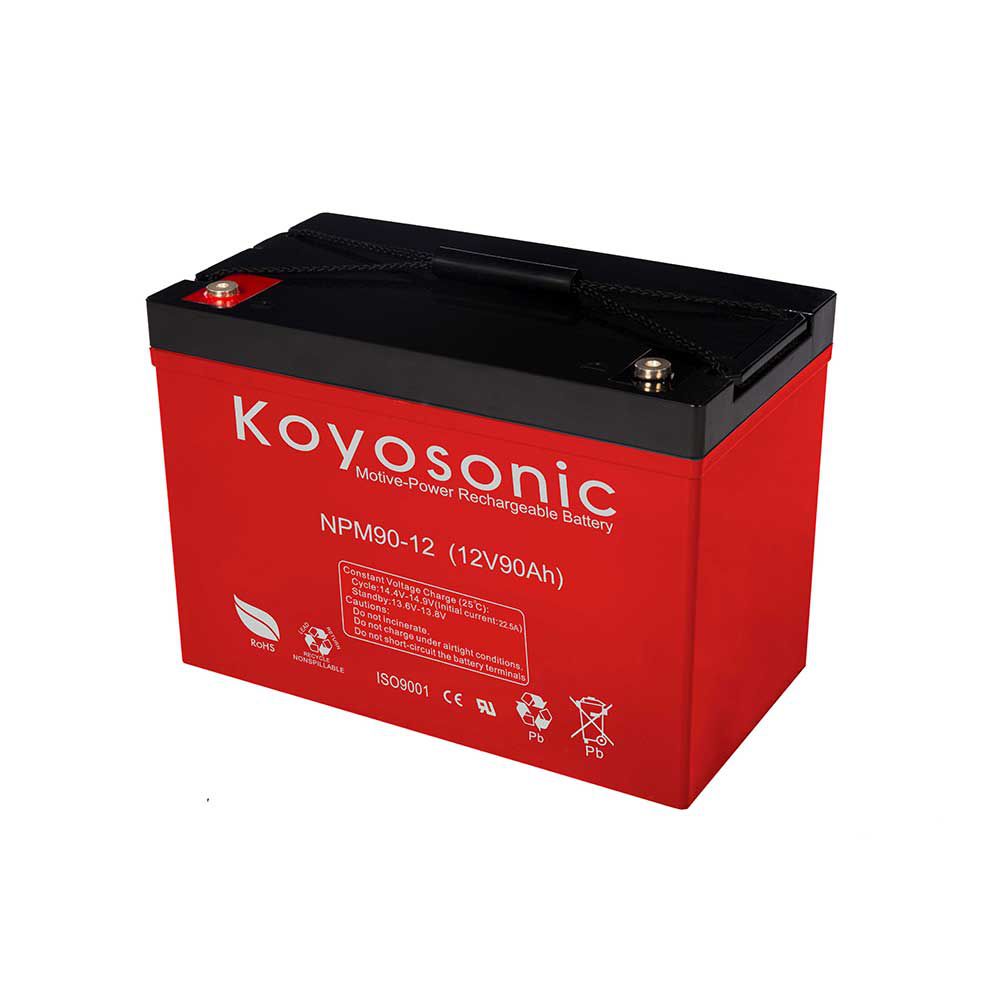

NPM Series of Motive-Power Batteries

NPM series of battereis are  specially designed for some power equipment such as cleaning machines, golf carts, lawn mower,scooters and tricycles. This series of batteries are assembled with very special plates (quite different grill with special lead-alloy) to overcome hardworking condition. And they can offer much longer deep cycles than ordianary NPC deep-cycle batteries. The design life of our NPM batteries is 15 years.

Request Now
Applications
Typical Applications: Back-up power equipment, Electronic instruments, Big UPS system,Telecommunication, Electric power station, Solar power system and Wind Power system.
Characteristics
General Features: Nonspillable and Sealed Maintenance-free Operation,  High Quality and High Reliability, Exceptional Deep Discharge Recovery, Low Self-discharge. Longer deep cycle Life, High-tin in plates, etc.
General Specifications
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPM200-6 6 200 306 168 220 225 30.5 T5
NPM220-6 6 220 306 168 220 225 32.0 T5
NPM225-6 6 225 260 180 247 252 30.0 T5
NPM240-6 6 240 243 187 275 275 31.5 T5
NPM250-6 6 250 260 180 265 272 35.0 T5
NPM330-6 6 330 295 178 354 360 46.0 T5
NPM350-6 6 350 295 178 354 360 47.0 T5
NPM400-6 6 400 295 178 404 410 56.0 T5
NPM450-6 6 450 295 178 404 410 57.0 T5
NPM180-8 8 180 260 182 266 270 34.0 T5
NPM200-8 8 200 260 182 295 301 40.0 T5
NPM20-12 12 20 181 77 167 167 6.1 T1
NPM24-12 12 24 166 175 126 126 8.5 T1
NPM26-12 12 26 165 126 174 179 8.7 T1
NPM35-12 12 35 196 130 155 167 10.5 T3
NPM40-12 12 40 198 166 174 174 14.5 T3
NPM55-12 12 55 229 138 208 212 17.0 T3
NPM70-12 12 70 350 167 178 178 23.5 T3
NPM75-12 12 75 260 169 211 215 25.0 T3
NPM85-12 12 80 260 169 211 215 26.5 T3
NPM90-12 12 90 307 169 211 216 28.5 T3
NPM100-12 12 100 307 169 211 216 30.5 T3
NPM110-12 12 110 331 176 214 220 31.0 T4
NPM120-12 12 120 331 176 214 220 33.5 T4
NPM130-12 12 130 407 173 210 233 39.5 T5
NPM140-12 12 140 341 173 283 288 42.0 T5
NPM150-12 12 150 484 171 241 241 46.0 T4
NPM180-12 12 180 532 206 216 222 56.0 T4
NPM200-12 12 200 532 206 216 222 59.0 T4
NPM220-12 12 220 522 240 219 225 66.0 T5
NPM250-12 12 250 520 269 203 209 71.0 T5
NPM270-12 12 270 520 268 220 226 77.0 T5
