Overview

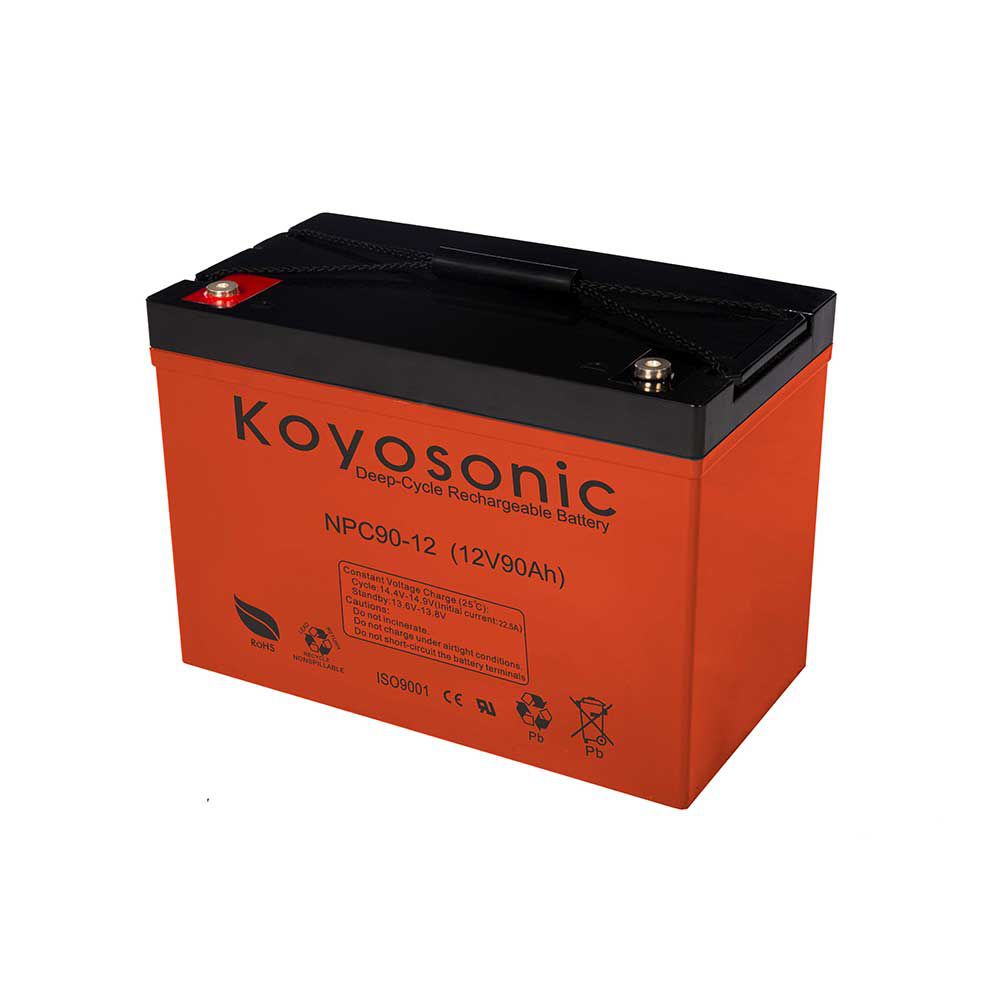

NPC Series of Deep-Cycle Batteries

In 2003, we introduced some chemical microelement to be anticorrosive in battery plates, founded by an expert in electrochemistry named as Doctor Yoshida Masayoshi in Toyama University in Japan. In addition, Professor Yoshida Masayoshi offered us a kind of special additive in mixing lead paste so that the active material cannot drop off from grid after vibration for 3 times based on Japanese Industrial Standard (JISC8704-99). Furthermore, we have been using thesame technical process adopted by some manufacturer in Japan to produce lead acid batteries from plate making and battery assembling so that all of our batteries are very stable and consistent in quality. The design life of our NPC batteries is 12 years

Request Now
Applications
NPC series of batteries are mainly used for compound-power electric vehicles such as wheel chairs,  electric bikes, electric motorcycles , electric scooters and Golf trolleys.
Characteristics
Superior Deep Cycle Design with quite different design in plates. High Power Density.Thick Plates and High-density Active Material. Longer Life in Deep Cycle Applications. Excellent Recovery from Deep Discharge. Good internal water cycling: based on the oxygen compound principle, little gas generated & little water depletion. Excellent discharge characteristics: low internal resistance, compact, excellent discharge performance.
General Specifications
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPC4-12 12 4 90 70 101 107 1.5 F1/F2
NPC7-12 12 7 151 65 94 100 2.35 F1/F2
NPC10-12 12 10 152 99 96 102 3.4 F1/F2
NPC15-12 12 12 152 99 96 102 3.8 F1/F2
NPC18-12 12 18 181 77 167 167 5.4 T1
NPC20-12 12 20 181 77 167 167 6 T1
NPC24-12 12 24 165 126 174 179 8 T3
NPC26-12 12 26 166 175 126 126 8.2 T3
NPC33-12 12 33 196 130 155 167 10.5 T3
NPC38-12 12 38 198 166 174 174 12.8 T3
NPC50-12 12 50 229 138 208 212 16.9 T3
NPC65-12 12 65 350 167 178 178 21.2 T3
NPC70-12 12 70 260 169 211 215 24 T3
NPC90-12 12 90 307 169 211 215 26.8 T3
NPC100-12 12 100 331 174 214 219 29.6 T4
NPC120-12 12 120 331 174 214 219 32.8 T4
NPC120-12A 12 120 407 174 210 233 34.2 T5
NPC150-12 12 150 484 171 241 241 44 T4
NPC180-12 12 180 522 240 219 224 58 T5
NPC200-12 12 200 522 240 219 224 60 T5
NPC250-12 12 250 520 268 220 225 70.5 T5
NPC130-6 6 130 260 180 247 251 21 T5
NPC200-6 6 200 260 180 247 251 28.2 T5
NPC220-6 6 220 323 178 224 229 29.5 T5
NPC225-6 6 225 260 180 247 251 30 T5
