Overview

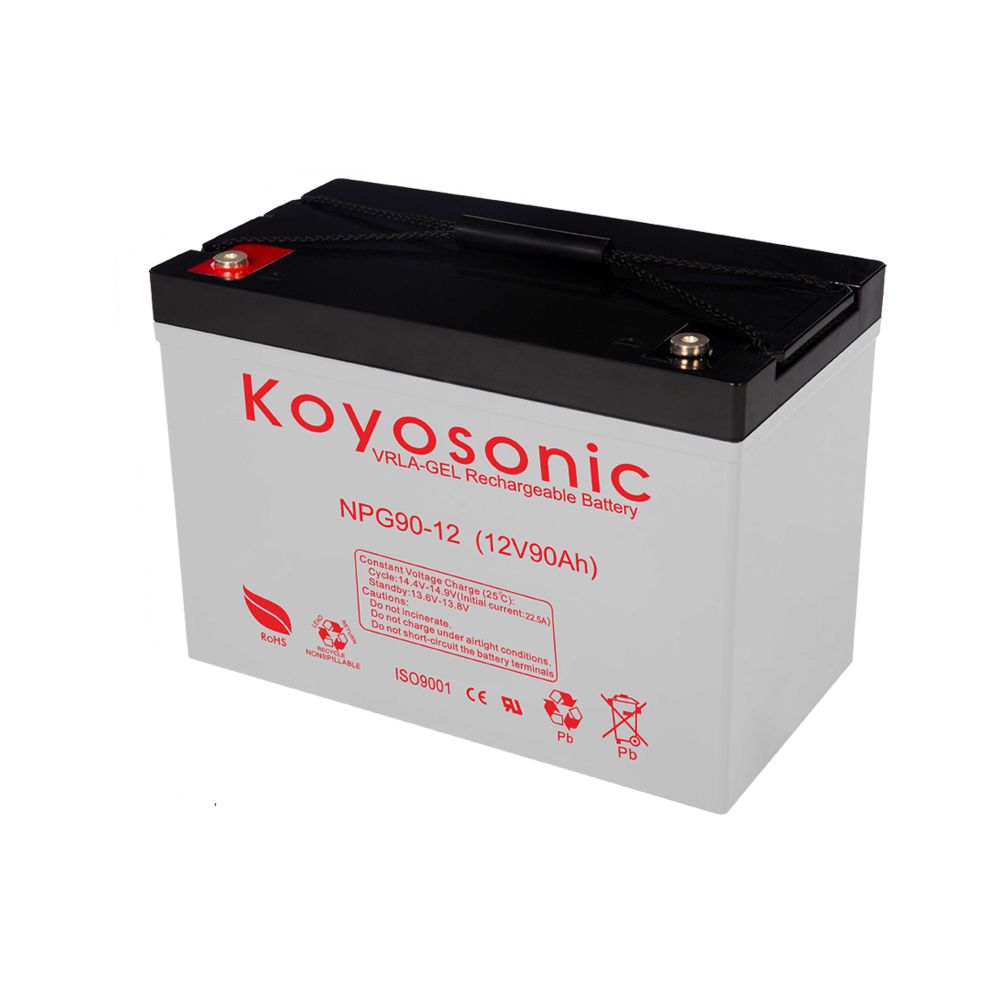

Gel Series of VRLA-GEL Batteries

NPG series of Gel batteries offer reliable cold cranking (starting power) and maximum power supply with a superior cycling performance. The robust construction ensures the battery will continue to work through the most extreme conditions with a high resistance to vibration. They are exceptionally clean and safe to handle. The battery acid is fixed using gel, making the Gel battery completely leak proof, permitting the battery to be inclined to an angle of 180 C. Gel batteries incorporate gas recombination technology, ensuring neither gas nor acid vapours are able to escape, making Gel completely maintenance free. A slow self-discharge rate, plus its capability of recovery after deep discharge,makes a Gel battery ideally suited for seasonal or infrequent use.

Request Now
Applications
Golf caddy. Floor Cleaning machines. Wheelchair / Electric vehicles. Emergency & special vehicles (Police, fire, ambulances, rescue, etc.).Refrigerated vehicles Construction machinery. Marine/ Boats /Navigational Aids (sailing boats, motorized yachts, motor boats, etc). Leisure vehicles (caravans, mobile homes, etc). Engine Starting.
Characteristics
Our Gel batteries are basically valve regulated lead acid ( VRLA ) batteries with a crossbreed of and technologies blended together. Aimed directly at the marine, recreational vehicle and solar market, this technology provides better service life, especially compared to standard AGM batteries. GEL deep cycle life and high rates of discharge. Our gel batteries offer users greater features and benefits over the standard AGM batteries.
General Specifications
NPG series of VRLA-Gel Batteries
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPG7-12 12 7 151 65 94 100 2.15 F1/F2
NPG9-12 12 9 151 65 94 100 2.45 F1/F2
NPG12-12 12 12 152 99 96 102 3.5 F1/F2
NPG20-12 12 20 181 77 167 167 6 T1/L1
NPG24-12 12 24 165 126 174 179 8 T3
NPG26-12 12 26 166 175 126 126 8.5 T3
NPG33-12 12 33 196 130 155 167 10.3 T3
NPG38-12 12 38 198 166 174 174 12.5 T3
NPG42-12 12 42 198 166 174 174 13 T3
NPG50-12 12 50 229 138 208 212 16 T3
NPG65-12 12 65 350 167 178 178 20.5 T3
NPG70-12 12 70 260 169 211 215 22 T3
NPG80-12 12 80 260 169 211 215 24 T3
NPG90-12 12 90 307 169 211 215 27 T3
NPG100-12 12 100 331 174 214 219 28.5 T4
NPG100-12A 12 100 407 174 210 233 30 T5
NPG110-12 12 110 331 174 214 219 30 T4
NPG120-12 12 120 331 174 214 219 33 T4
NPG130-12 12 130 407 174 210 233 35 T5
NPG150-12 12 150 484 171 241 241 44 T5
NPG180-12 12 180 532 206 216 221 56 T5
NPG200-12 12 200 522 240 219 224 58.5 T5
NPG220-12 12 220 522 240 219 224 60 T5
NPG250-12 12 250 520 268 220 225 71 T5
NPG130-6 6 130 260 180 247 251 21 T5
NPG200-6 6 200 260 180 247 251 28.2 T5
NPG200-6 6 200 306 168 220 225 28 T5
NPG225-6 6 225 260 180 247 251 30.3 T5
NPG220-6 6 220 323 178 224 229 29.8 T5
NPG100-2 2 100 171 72 205 230 6.8 T5
NPG200-2 2 200 173 111 329 365 13.5 T5
NPG300-2 2 300 171 151 330 365 21 T5
NPG400-2 2 400 211 176 329 367 26.5 T5
NPG500-2 2 500 241 171 349 368 31.5 T5
NPG600-2 2 600 301 175 331 366 38.5 T5
NPG800-2 2 800 410 176 330 365 52.5 T5
NPG1000-2 2 1000 472 172 338 355 62 T5
NPG1200-2 2 1200 472 172 338 355 69 T5
NPG1500-2 2 1500 401 351 342 378 99 T5
NPG2000-2 2 2000 491 351 343 383 131 T5
NPG2500-2 2 2500 712 353 341 382 181 T5
NPG3000-2 2 3000 712 353 341 382 191 T5
NPCG series of Deep-Cycle Gel Batteries
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPCG10-12 12 10 152 99 96 102 3.5 F1/F2
NPCG12-12 12 12 152 99 96 102 3.9 F1/F2
NPCG20-12 12 20 181 77 167 167 5.9 T1
NPCG24-12 12 24 165 126 174 179 8.1 T3
NPCG26-12 12 26 166 175 126 126 8.4 T3
NPCG33-12 12 33 196 130 155 167 10.2 T3
NPCG38-12 12 38 198 166 174 174 13 T3
NPCG50-12 12 50 229 138 208 212 17.2 T3
NPCG65-12 12 65 350 167 178 178 21.5 T3
NPCG70-12 12 70 260 169 211 215 24.2 T3
NPCG80-12 12 80 307 169 211 215 27 T3
NPCG100-12 12 100 331 174 214 219 30 T4
NPCG120-12 12 120 331 174 214 219 33 T4
NPCG120-12A 12 120 407 174 210 233 34.5 T5
NPCG150-12 12 150 484 171 241 241 44.2 T4
NPCG180-12 12 180 522 240 219 224 58.5 T5
NPCG200-12 12 200 522 240 219 224 61 T5
NPCG250-12 12 250 520 268 220 225 71 T5
NPCG225-6 6 200 260 180 247 251 30.2 T5
NPCG220-6 6 200 323 178 224 229 30 T5
NPF series of Front-Terminal Gel Batteries
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPFG55-12 12 55 277 106 223 223 16.2 T2
NPFG80-12 12 80 562 114 188 188 25.2 T2
NPFG100-12 12 100 507 110 223 223 30 T5
NPFG105-12 12 105 394 110 286 286 31 T5
NPFG125-12 12 125 552 110 239 239 38 T5
NPFG150-12 12 150 551 110 288 288 44.5 T5
NPFG160-12 12 160 551 110 288 288 45 T5
NPFG175-12 12 175 546 125 316 323.5 54 T5
NPFG180-12 12 180 560 125 316 316 54.5 T5
NPFG200-12 12 200 560 125 316 316 57.5 T5
NPMG series of Motive-Power Gel Batteries
Model Volt
(V)		 Capacity
(Ah )		 Dimension (mm) Approx.
Weight (Kg)		 Terminal
Type
L W H T.H.
NPMG200-6 6 200 306 168 220 225 30.5 T5
NPMG220-6 6 220 306 168 220 225 32 T5
NPMG225-6 6 225 260 180 247 252 30 T5
NPMG240-6 6 240 243 187 275 275 31.5 T5
NPMG250-6 6 250 260 180 265 272 35 T5
NPMG330-6 6 330 295 178 354 360 45.5 T5 /DT
NPMG335-6 6 350 295 178 354 360 47 T5 /DT
NPMG400-6 6 400 295 178 404 410 56 T5 /DT
NPMG450-6 6 450 295 178 404 410 57 T5 /DT
NPMG180-8 8 180 260 182 266 271 34 T5
NPMG200-8 8 200 260 182 295 301 39.6 T5
NPMG20-12 12 20 181 77 167 167 5.9 T1
NPMG24-12 12 24 166 175 126 126 8.3 T2
NPMG26-12 12 26 165 126 174 179 8.5 T3
NPMG35-12 12 35 196 130 155 167 10.5 T3
NPMG40-12 12 40 198 166 174 174 14.2 T3
NPM55-12 12 55 229 138 208 212 16.8 T3
NPMG70-12 12 70 350 167 178 178 24 T3
NPMG75-12 12 75 260 169 211 215 25 T3
NPMG85-12 12 85 260 169 211 215 26 T3
NPMG90-12 12 90 307 169 211 216 28 T3
NPMG100-12 12 100 307 169 211 216 30 T3
NPMG120-12 12 120 331 176 214 220 33 T4
NPMG130-12 12 130 407 173 210 233 39 T5
NPMG140-12 12 140 341 173 283 288 42 T5
NPMG150-12 12 150 484 171 241 241 46 T4
NPMG180-12 12 180 532 206 216 222 57 T4
NPMG200-12 12 200 532 206 216 222 59 T4
NPMG220-12 12 220 522 240 219 225 66 T5
NPMG240-12 12 240 520 269 203 209 71 T5
NPMG260-12 12 260 520 268 220 226 77 T5
